C. Matter and Energy · Electrical Phenomena, Energy, and Devices

Parts of a Simple Circuit

C2.6 A1.4 A1.5About 45 minutes

Learning goals

I can name the four main parts of a simple circuit: energy source, conductors, load and switch.
I can explain the job (function) of each part.
I can tell the difference between an open circuit, a closed circuit and a short circuit.
I can read and draw a simple circuit diagram using symbols.

Words to know

energy source
The part of a circuit that pushes the current and supplies the energy, such as a battery.

conductor (wire)
The part of a circuit that carries current from one part to the next.

load
A device in a circuit that changes electrical energy into another useful form, such as a bulb, motor or buzzer.

switch
The part of a circuit that opens or closes the path, turning the current off or on.

closed circuit
A complete path, so current flows.

open circuit
A path with a gap in it, so current does not flow.

short circuit
A path that lets current skip the load and flow straight back to the source. It can make wires and batteries dangerously hot.

circuit diagram
A drawing of a circuit that uses simple symbols for each part.

What's inside a flashlight?

A flashlight looks simple: you push a button and light comes out. But inside is a tiny electrical system with four kinds of parts, each with its own job. Every circuit, from a flashlight to the lights in a hockey arena, uses the same four kinds of parts.

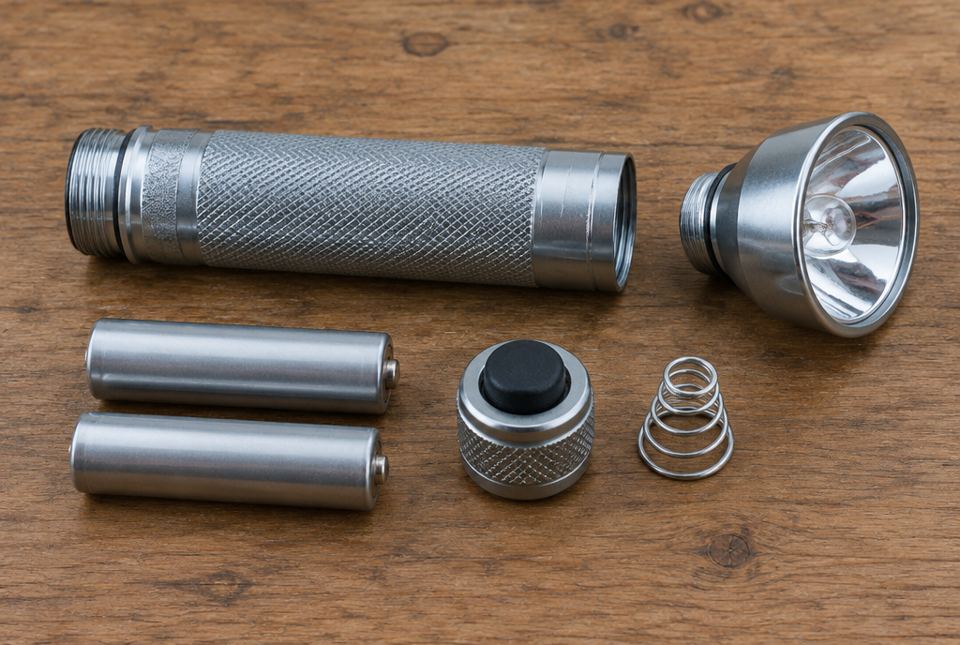

A metal flashlight taken apart on a table: the tube, two batteries, a bulb in its reflector, a switch cap and a spring. — Can you find the parts of a circuit? The batteries are the energy source, the bulb is the load, the button is the switch, and the metal body and spring act as conductors. AI-generated image

The four parts of a simple circuit

Energy source. It pushes the current around the circuit and supplies the energy. Examples: a battery (chemical energy → electrical energy), a solar cell (light → electrical), or a generator at a power station.
Conductors (wires). They make a path for the current, carrying it from the source to the load and back to the source. They are usually copper wires covered in plastic.
Load. It uses the electrical energy and changes it into a useful form. Examples: a bulb (light), a motor (motion), a buzzer (sound), a heater (heat).
Switch (control). It opens or closes the circuit, so you can turn the load off or on. When the switch is on, it closes the gap and current flows. When it is off, it opens a gap and the current stops.

Many circuits also have safety devices. In your home, fuses and circuit breakers open the circuit automatically if too much current flows, so the wires don't overheat.

Open, closed and short circuits

Closed circuit: a complete loop from the source, through the load, and back. Current flows, and the bulb lights.
Open circuit: there is a gap somewhere (an open switch, a loose wire, a burnt-out bulb). No current flows.
Short circuit: the current finds a shortcut that skips the load, for example, a wire connecting the battery's + and − ends directly. With nothing to slow it down, a large current flows. The wire and battery get hot fast and the battery drains quickly. Never make a short circuit on purpose. If one happens by accident, disconnect it right away.

Circuit diagram symbols. In a cell, the long line is the positive (+) end and the short, thick line is the negative (−) end. A battery is two or more cells joined together. A dot shows where wires join (a junction).

Cell or battery?

Scientists call one AA a cell. A battery is two or more cells joined together, like the two AAs in a flashlight. In everyday life we call a single AA a "battery" too, and that's fine.

A circuit diagram of a simple circuit: a battery (energy source), wires (conductors), a bulb (load) and a switch. The switch is open, so there is a gap and the bulb is off.

Worked example

Let's read a circuit diagram

Look at the simple circuit diagram above. Name each part and its job. Will the bulb light right now? What would make it light?

The symbol with a long line and a short, thick line is the battery: the energy source that pushes the current.
The straight lines are wires: the conductors that carry current around the loop.
The circle with an X is the bulb: the load that changes electrical energy into light (and some heat).
The line that is lifted up, with a gap, is an open switch: the control.
Because the switch is open, the circuit has a gap. It is an open circuit, so no current flows.

The bulb is off. Closing the switch would complete the circuit, current would flow, and the bulb would light.

Just for fun

Why did the light bulb love the switch?

Because it always turned it on!

Hands-on activity

Build a circuit with a paper-clip switch

You need: 2 AA batteries taped end to end (+ touching −), a small flashlight bulb (from an old 2-AA flashlight), foil wires wrapped in tape (like in the conductivity lesson), a piece of cardboard, 2 metal paper fasteners (brass split pins), 1 metal paper clip, tape, and a sharp pencil for poking holes.

Make the switch

With a grown-up, use the pencil to poke two holes in the cardboard about 3 cm apart. Push a paper fastener through each hole and open its legs underneath.
Hook the paper clip around one fastener. Swing it so it touches the other fastener (switch on: closed), or swing it away (switch off: open).

Build the circuit

Wire 1: from the battery's + end to the metal side of the bulb base.
Wire 2: from the tip of the bulb to the first paper fastener. Wrap the bare foil around the fastener's head.
Wire 3: from the second paper fastener back to the battery's − end.
Swing the paper clip to touch both fasteners. The bulb should light. Swing it away. The bulb should go off.

Draw it (A1.5): draw a circuit diagram of what you built, using the symbols. Label the energy source, conductors, load and switch, and write each part's job.

Troubleshooting: if the bulb won't light, check that the batteries face the same way, every foil end touches bare metal, and the bulb isn't burnt out (test it in a flashlight).

Safety (A1.4): never connect the battery's + and − ends with foil without the bulb in the path (a short circuit: the foil and batteries get hot). If anything feels warm, disconnect it right away. Ask a grown-up to help poke the holes, and keep paper fasteners and clips away from young children.

Your turn

Name the four main parts of a simple circuit.

What is the job of the energy source?

What is the job of the load? Give two examples of loads.

What is the job of the switch?

What is the difference between an open circuit and a closed circuit?

In a circuit diagram, which line of the cell symbol is the positive end?

What is a short circuit, and why is it dangerous?

More practice: warm-up

Which part of a circuit is a battery?

Which part of a circuit is a doorbell buzzer?

Which part of a circuit is a copper wire?

In a circuit diagram, what does a circle with an X inside mean?

If a switch is off, is the circuit open or closed?

More practice: on your own

Name the four parts of a battery-powered fan and the job of each.

The bulb in Ravi's circuit won't light, even with the switch closed. Give three possible reasons.

Why do homes have fuses or circuit breakers?

Draw (or describe) a circuit diagram with one battery, one switch and one motor, all in a single loop.

Why should the plastic covering on wires never be cut or damaged?

Challenge

Maddie builds a circuit: battery, bulb and switch in a loop. Then she accidentally lays a piece of foil that touches the wire on both sides of the bulb. The bulb goes out and the foil gets warm. Explain what happened.

A circuit diagram shows a battery, an open switch and a buzzer, but one wire doesn't connect to anything at one end. Will the buzzer sound if the switch is closed? Explain.

A solar-powered garden light has a solar cell, a rechargeable battery, a light sensor and an LED. Which parts act as energy sources, and which is the load?

Check your understanding

Quiz

Which part of a circuit changes electrical energy into a useful form, like light or motion?

What does a switch do?

In a circuit diagram, the symbol with one long line and one short, thick line is...

A circuit with a gap in it is called...

Why is a short circuit dangerous?

What is the job of the wires in a circuit?

For parents and teachers

Big idea (C2.6): explain the functions of the components of a simple circuit: an energy source (battery), conductors (wires), a load (bulb, motor, buzzer) and a switch (control), plus safety devices like fuses and breakers. Children also learn standard circuit symbols so they can read and draw circuit diagrams (A1.5), and follow safety rules about short circuits (A1.4).

How to help: pick a battery-powered toy or flashlight and ask your child to name the four parts. When building, let them troubleshoot first before you step in: asking "Is there a complete path?" is more useful than fixing it for them.

Common difficulties:

Forgetting the return path. Current needs to go from the battery, through the load, and back to the battery.
Mixing up open and closed. An open switch means off (a gap); a closed switch means on.
Thinking a short circuit makes a bulb brighter. The current bypasses the bulb, so it usually goes out, while the wires and battery heat up.

Safety: supervise battery circuits and make sure your child disconnects them afterward. Never let the battery's terminals be joined directly by foil or metal; it gets hot quickly. Use only AA, AAA or 9 V batteries, never outlets. Keep coin and button batteries away from young children.
